Description

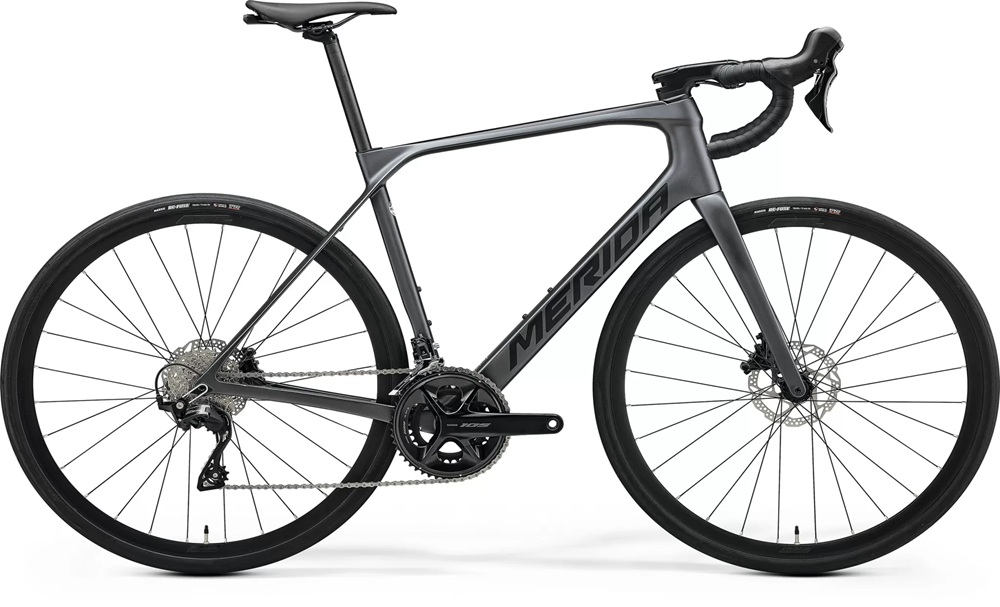

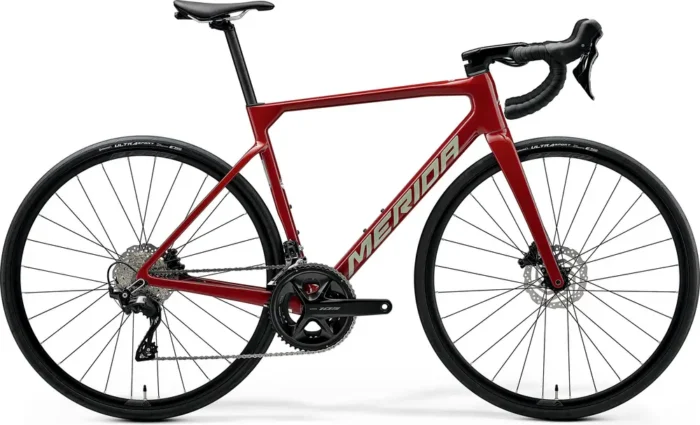

Merida SCULTURA 4000 Road Bike For Sale

The Merida SCULTURA 4000, built around Shimano’s latest, super smooth 12-speed 105 groupset and featuring MERIDA’s award-winning SCULTURA CF3 full carbon frame, is far from an entry-level bike in MERIDA‘s latest SCULTURA frame design family. Similar to its larger siblings, it combines a long list of air-slicing features and race-proven geometry borrowed from Merida’s REACTO line with low weight and class-leading riding comfort, resulting in an almost unrivaled package.

Features at a Glance

Weight: 8.8 kg
Frame: Carbon
Fork: Carbon
Wheels: 700c Aluminum
Drivetrain: 2×12
Groupset: 105
Brakes: Shimano 105 Hydraulic Disc

Specifications of Merida SCULTURA 4000 – 2025

Build

Frame	SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100×12/ 142x12mm axle standard, Pressfit 86,5 BB Standard: BB86/BB92, 86.5mm, Press Fit Tire Clearance: 30c
Fork	SCULTURA CF3 disc, material: carbon, 700x30C max. wheelsize
Bottom Bracket	Shimano SM-BB72-41B, Pressfit 86.5
Headset	MERIDA TEAM SL, VP-MRBHB (OP-203 neck)
Stem	MERIDA EXPERT SL 2PII, material: aluminium, 9° stem angle, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),
Handlebar	MERIDA EXPERT SLII, material: aluminium, 380mm (3XS-XXS-XS), 400mm (S-M-L-XL)
Saddle	MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost	MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon Type: Rigid

Groupset

Rear Derailleur	Shimano 105, GS
Front Derailleur	Shimano 105
Crank	Shimano 105 R7100, 52-36 teeth, 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
Shifters	Shimano 105 disc
Cassette	Shimano 105 R7101, 11-34 teeth, 12 speed
Chain	Shimano M6100-12
Brakes	Shimano 105, Hydraulic disc Type: Shimano 105 Hydraulic Disc
Brake Levers	Shimano 105

Wheels

Rims	MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes	Double Butted Black stainless
Front Hub	Shimano HB-TC500 / Shimano HB-TC500-HL, 100x12mm width front hub, 28 spoke holes, Centerlock, 12-142mm width rear hub, 28 spoke holes, Centerlock
Rear Hub	Shimano HB-TC500 / Shimano HB-TC500-HL, 100x12mm width front hub, 28 spoke holes, Centerlock, 12-142mm width rear hub, 28 spoke holes, Centerlock
Tires	Front: Continental Ultra Sport III, 700x28C, fold, Rear: Continental Ultra Sport III, 700x28C, fold
Disc Rotors	Shimano RT10, 160mm

Additional information

Weight	8.8 kg

Merida SCULTURA 4000 | 2025
