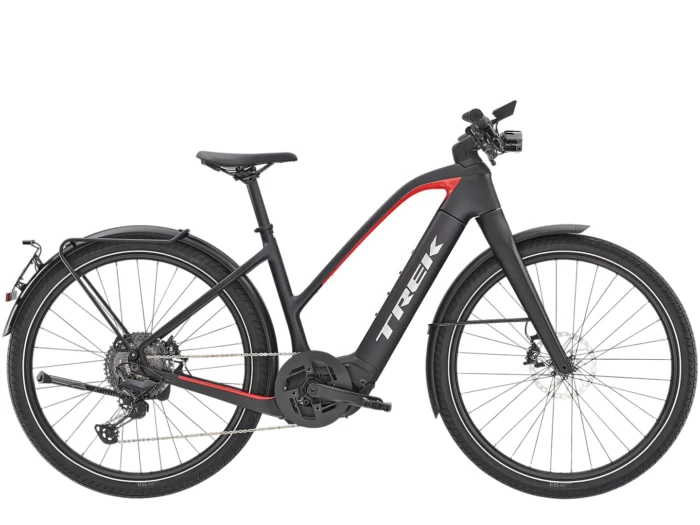

Trek Allant+ 9.9S Stagger Electric City Bike
Original price was: €6,399.€4,999Current price is: €4,999.
Description
Trek Allant+ 9.9S Stagger E-Bike For Sale Online
The Allant+ 9.9S Stagger is the ultimate e-bike and a more than worthy replacement for your car. Thanks to the extremely powerful Bosch Performance Speed motor and extremely long-range battery, you can easily cover longer commutes and have a lot of fun on quick weekend trips. In addition, the lightweight OCLV Carbon frame is equipped with high-performance parts and well-thought-out features that are specifically tailored to the needs of ambitious e-bikers.
It’s the right bike for you if…
… you are an e-biker through and through and you want the best frame and components on the market. You are looking for an elegant and powerful carbon e-bike with a Bosch Performance Speed motor to cover long distances faster and with more riding pleasure.
You get this equipment
A sleek OCLV Carbon frame with Stagger geometry, a fully integrated 625 Wh Bosch PowerTube (the longest-ranging battery from Bosch), an extremely powerful Performance Speed drive unit from Bosch with 250 W of power and 75 Nm of torque for pedal assistance up to 45 km/h and a Kiox controller. It also comes with a Shimano XT/SLX 12-speed drivetrain, powerful hydraulic 4-piston disc brakes for strong braking performance in all weather conditions, an integrated lighting system, integrated cable routing through the stem, mudguards, a rear luggage rack and a stiff 27.5-inch -Wheels with thru-axles. In addition, it is compatible with Range Boost.
Our last word
High speeds, long range and an elegant look – this bike is made for the long haul. We built this bike from the ground up with the aim of creating the best bike in its class. The extraordinary design, the extremely powerful drive system, the carbon frame and the high-end components result in an absolutely brilliant bike.
Why you will love it
- You get a high-end carbon frame and top-performance components paired with the fastest and longest-ranging drive system from Bosch
- Compatible with Range Boost, an additional battery that can double the range of your e-bike so you can ride longer, cover further distances and experience bigger adventures

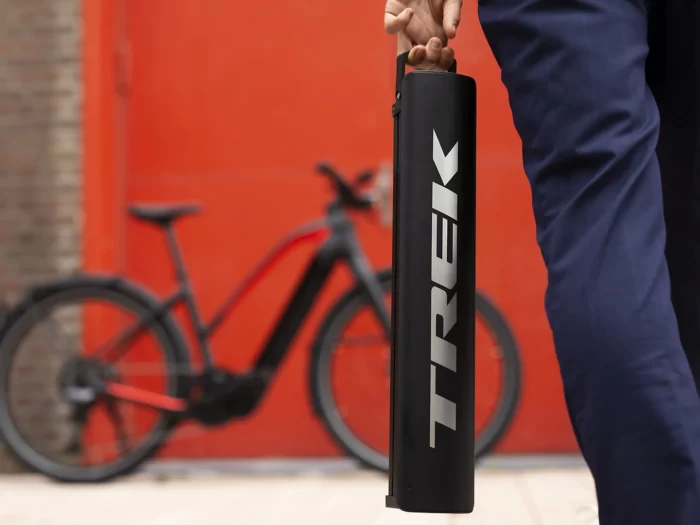

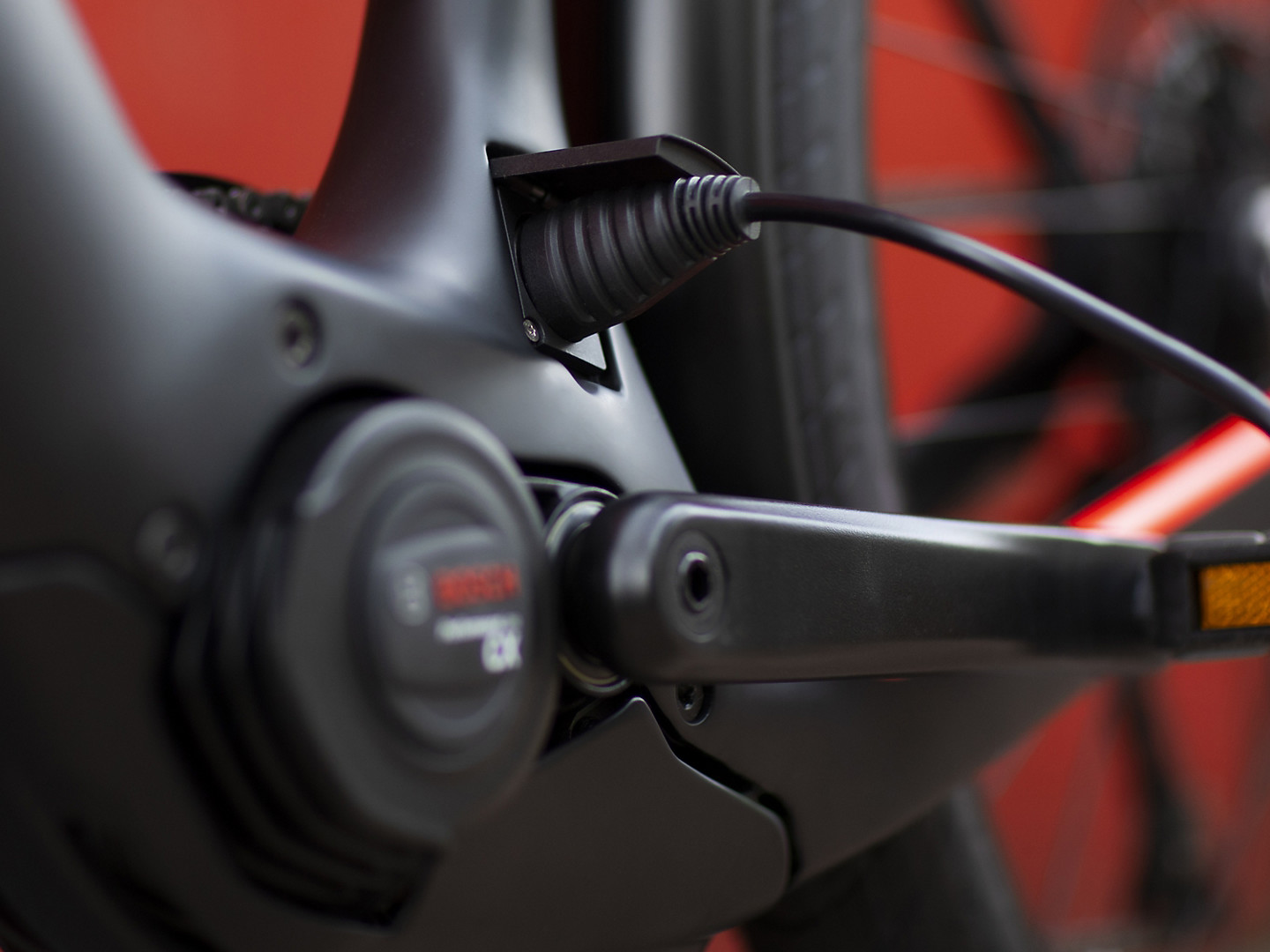

- Trek’s removable integrated battery (RIB – Removable Integrated Battery) looks good and is extremely user-friendly: it is completely integrated into the frame and can be easily removed without tools

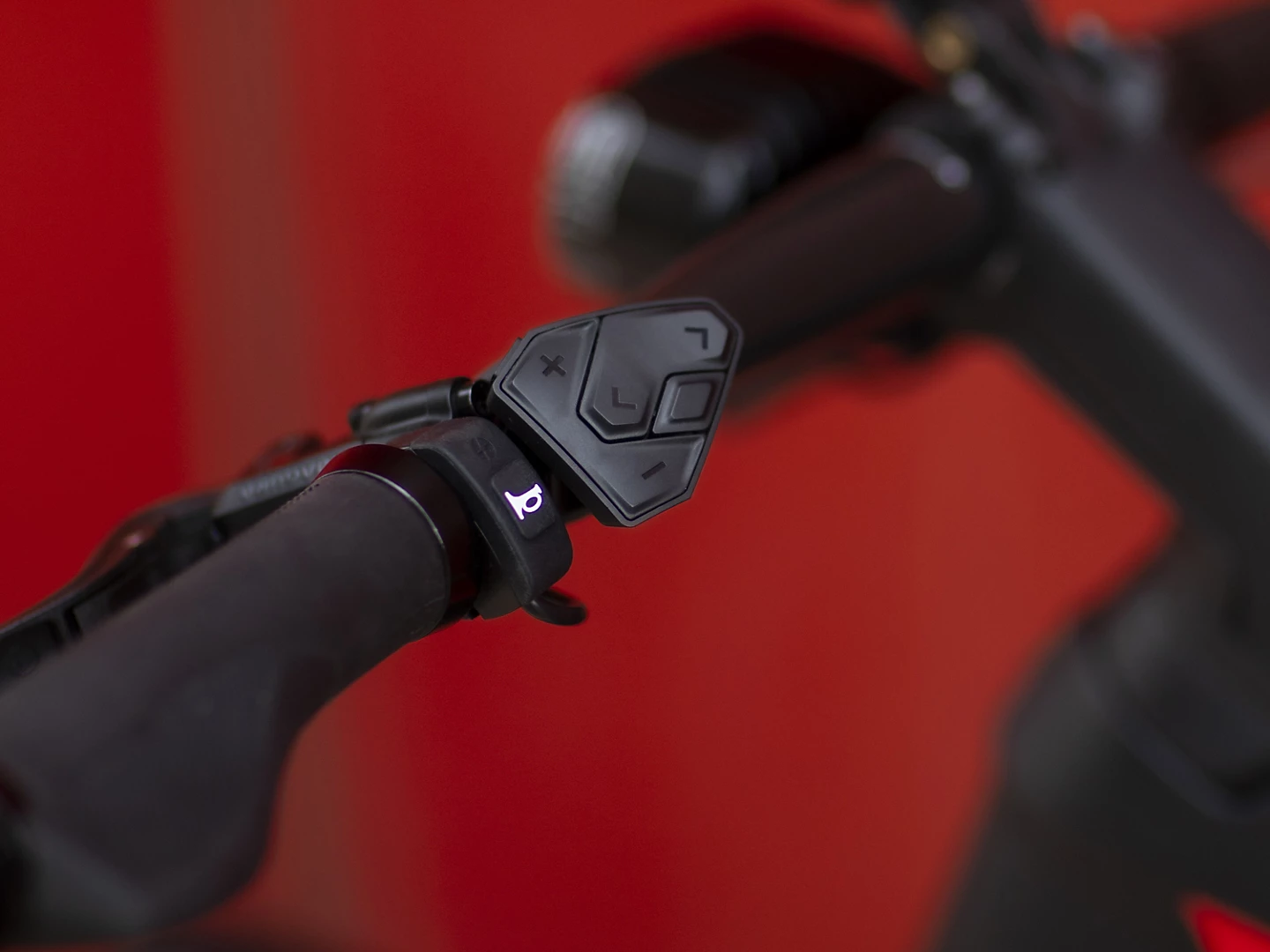

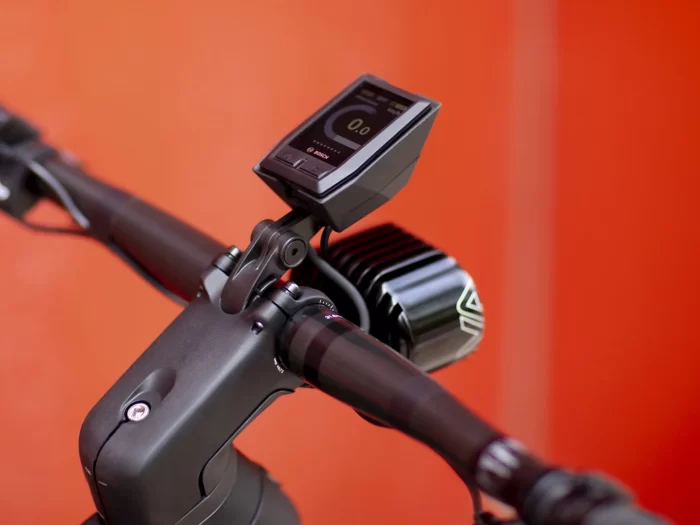

- The Kiox controller from Bosch with color display provides you with all important driving data, connects to your compatible devices via Bluetooth® and has an integrated anti-theft function
- The stagger geometry provides more confidence when mounting and dismounting
Technical specifications of Trek Allant+ 9.9S Stagger E-Bike
*Unless otherwise noted, features apply to all sizes
Frameset

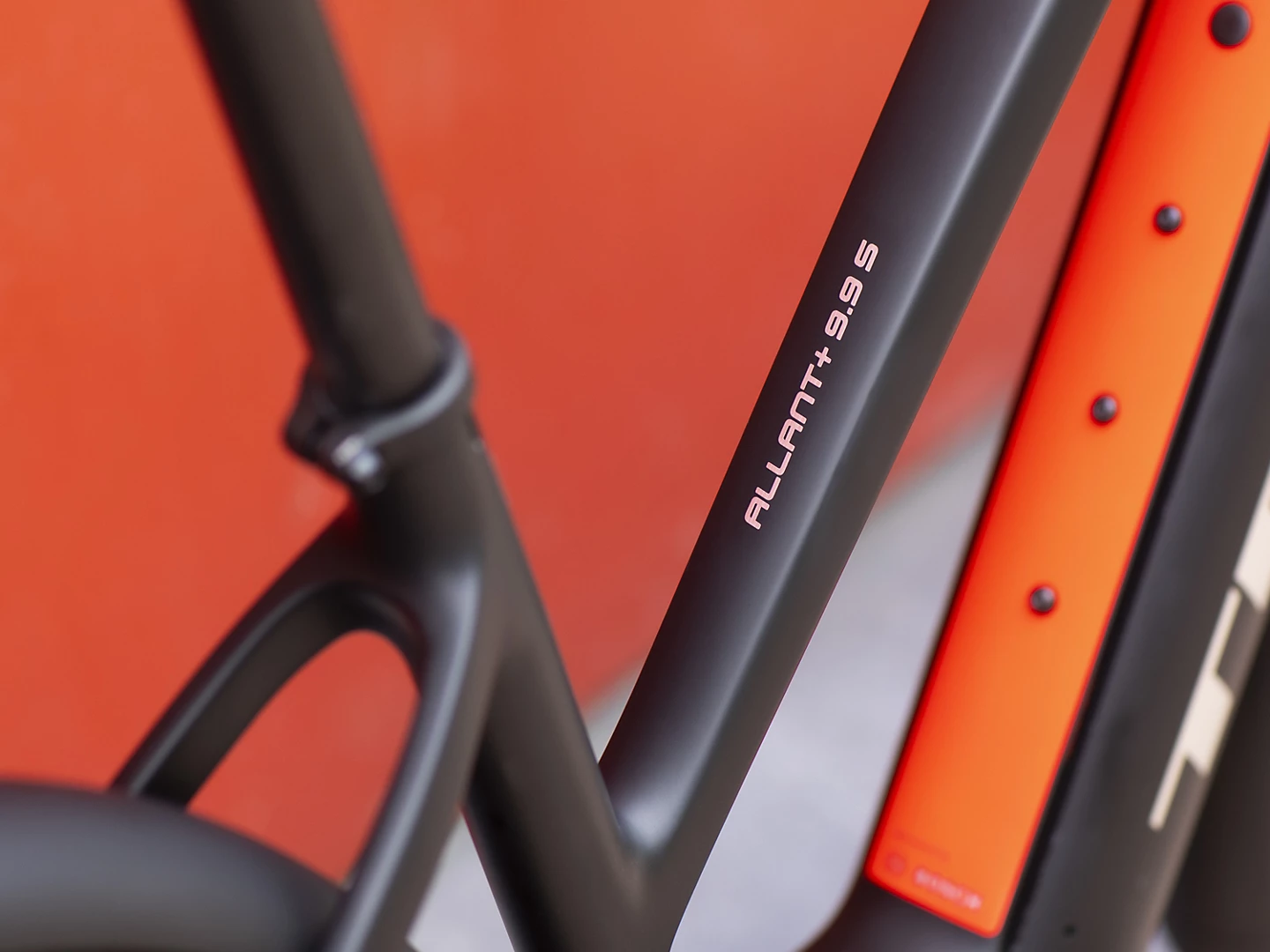

| Frame | OCLV Carbon, Removable Integrated Battery (RIB), Range Boost Compatible, Motor Armor, Internal Cable Routing, Post Mount Disc, 12mm thru-axle |
|---|---|
| *Fork | Size: S, M, L Allant carbon fork, Post Mount disc brake mount, 100 x 15 mm thru-axle |
| Size: S, M, L Allant+ aluminum rigid fork, 1 1/8” steel steerer tube, 100 x 15 mm thru axle, post mount disc brake mount |
Impellers
| VR hub | Shimano Deore XT M8110, Center Lock disc mount, 15 mm thru-axle |
|---|---|
| VR quick release | Bontrager Switch thru-axle, detachable lever |
| rear hub | Shimano Deore XT, 32h, center lock disc, 12mm thru-axle |
| HR quick release | Bontrager Switch thru-axle, detachable lever |
| Rim | Alex MD35, suitable for tubeless, 32 holes, 35 mm inner width, Presta valve |
| Spokes | DT Swiss 14g, black |
| Tires | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 TPI, 27.5 x 2.40″ |
drive
| Shifter | Shimano XT M8100, 12-speed |
|---|---|
| Rear Derailleur | Shimano XT M8120, long cage, Shadow Plus design |
| *Crank | Size: S, M ProWheel, aluminum, 170 mm crank arm length |
| Size: L ProWheel, aluminum, 175 mm crank arm length |
|
| Chainring | ProWheel 46T narrow/wide steel with aluminum guard |
| Cassette | Shimano SLX M7100, 10-45, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| *Pedal | Size: S, M, L Bontrager City Pedals |
| Size: S, M, L Wellgo C157, boron axle, plastic body |
|
| Size: S, M, L Track style, aluminum |
Components
| saddle | Bontrager Commuter Comp |
|---|---|
| *Seat post | Size: S, M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: L Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| handlebars | Bontrager Pro Lowriser, carbon, 31.8mm, 15mm rise, 690mm width |
| handles | Bontrager Satellite Elite, aluminum clamp |
| *Stem | Size: S Allant+ forged alloy, integrated cable routing, 45mm length, 31.8mm clamp |
| Size: M Allant+ forged alloy, integrated cable routing, 75mm length, 31.8mm clamp |
|
| Size: L Allant+ forged alloy, integrated cable routing, 95mm length, 31.8mm clamp |
|
| tax rate | Sealed cartridge, integrated |
| *Brake | Size: S, M, L Hydraulic 4-piston disc brake Magura MT5E with brake light switch |
| Size: S, M, L Hydraulic 4-piston disc brake Magura MT5N with brake light switch |
|
| *Brake disc | Size: S, M, L Magura Speed Pedelec, 6-hole disc mount, 180 mm |
| Size: S, M, L Magura, 180mm, 6-bolt disc mount |
Accessories
| battery pack | Bosch PowerTube 625 |
|---|---|
| charger | Bosch Standard Charger 4A 220-240V Smart System |
| controllers | Bosch Kiox with anti-theft protection |

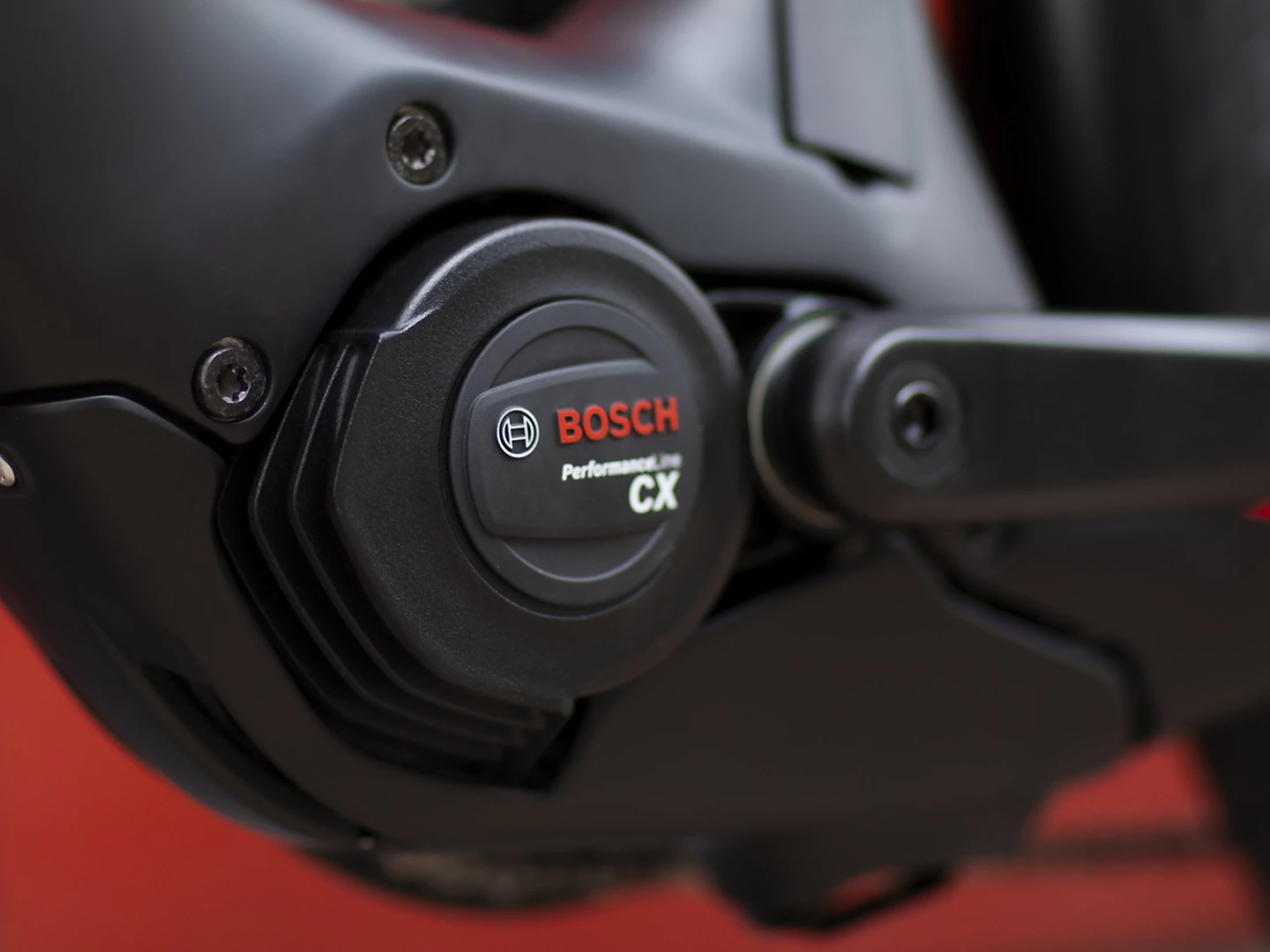

| engine | Bosch Performance Speed, 85 Nm, 45 km/h |

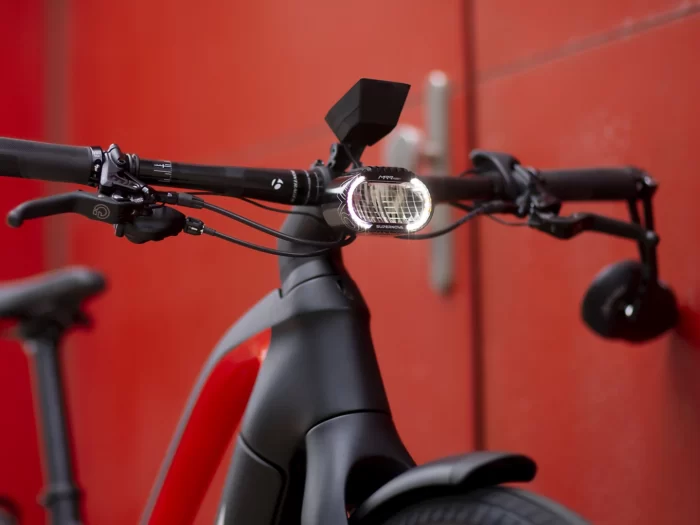

| lamp | Supernova M99 Pure+, 1,100 lumens with daytime running lights |
| side stand | Pletscher Comp Flex 18 |
| porter | Allant, integrated rear luggage rack, aluminium |
| *Fender | Size: S, M, L Alloy fender |
| Size: S, M, L Alloy fender for use with integrated rack |
Weight
| Weight | M – 18.56 kg / 40.92 lbs (without battery) |
|---|---|
| Max weight | This bike has a maximum weight limit (bike, rider and load) of 136 kg. |
Reviews
There are no reviews yet.
You may also like…
-
- -26%

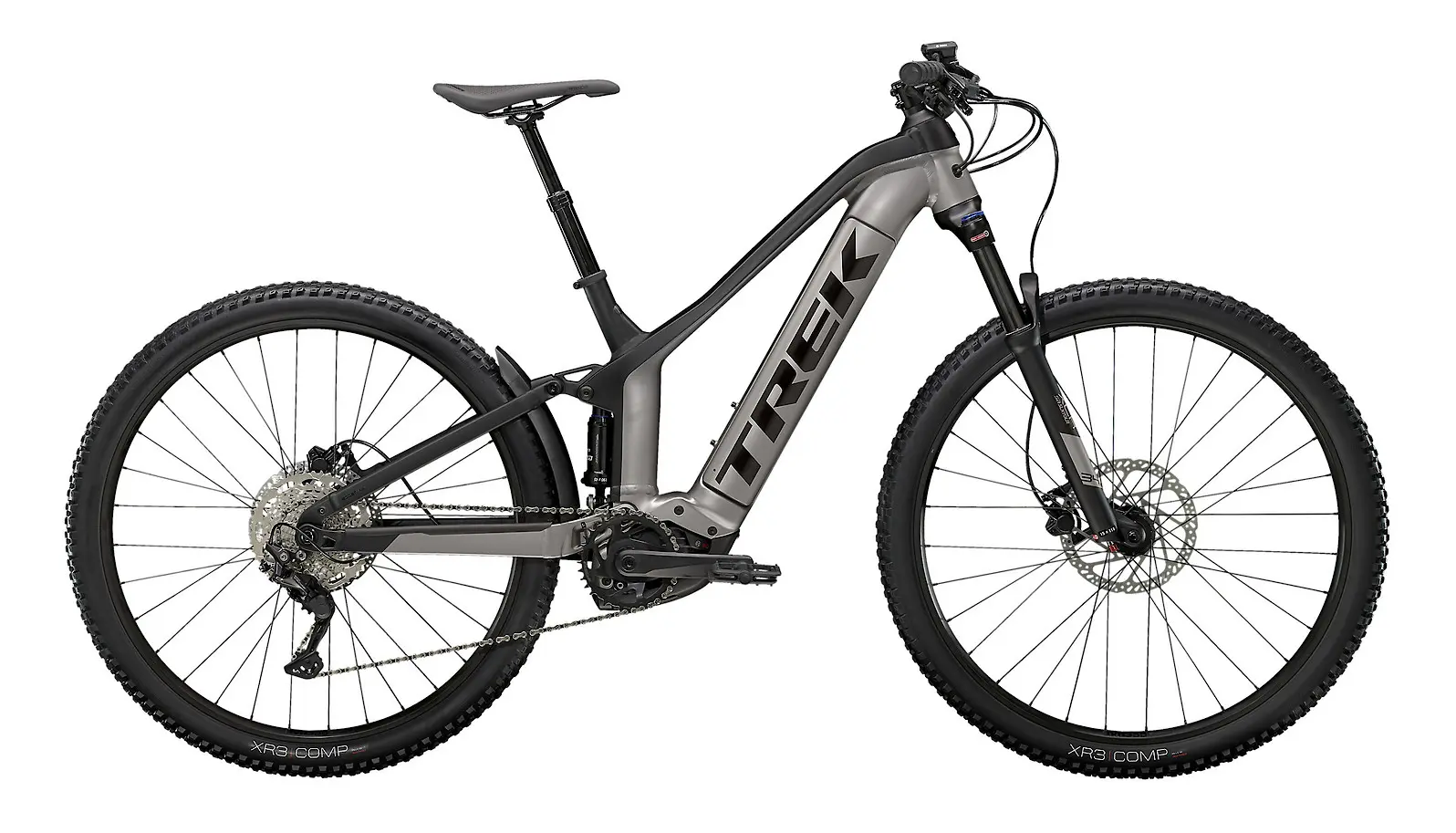

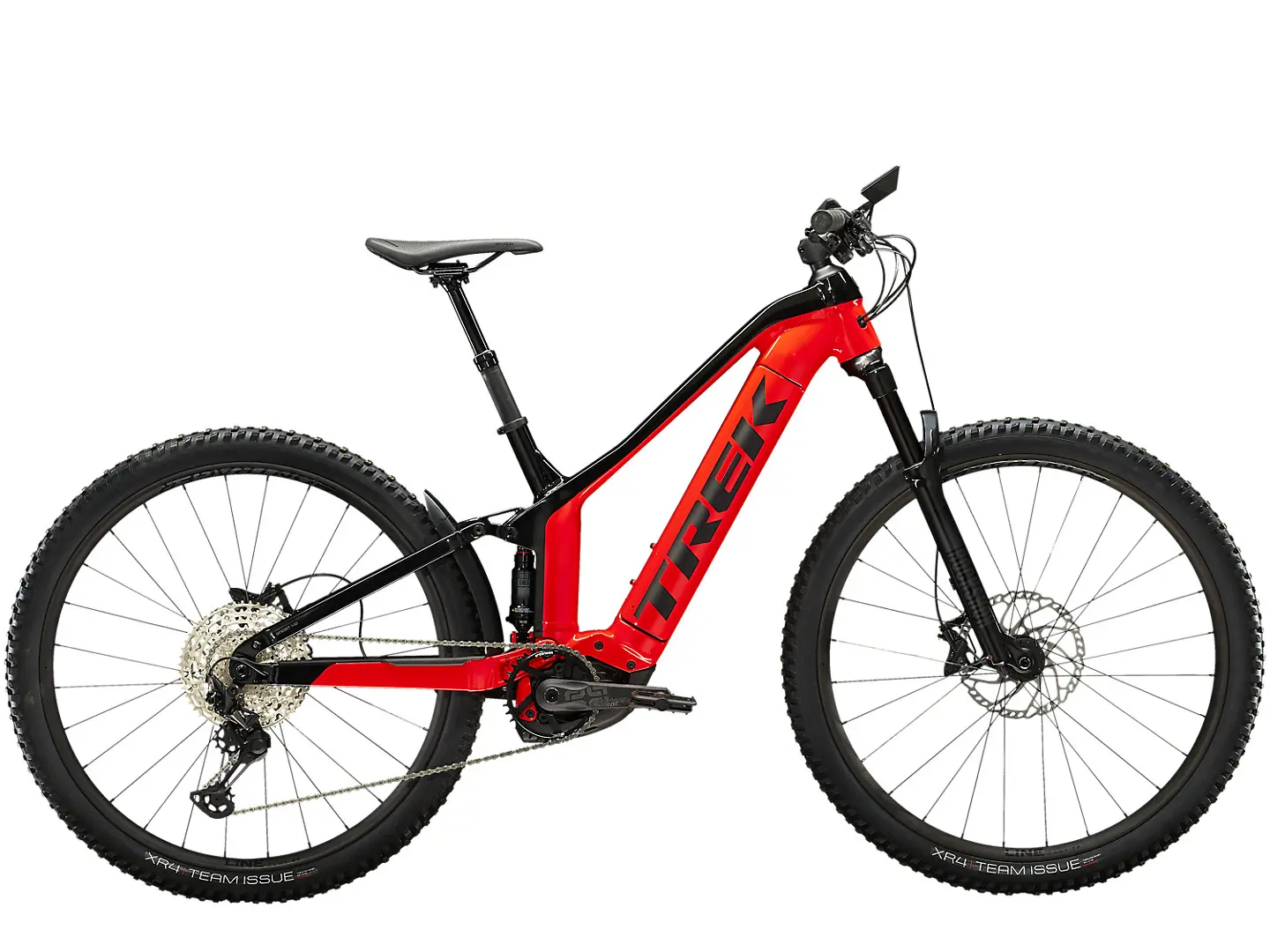

Trek Powerfly FS 7 Gen 2 | 2023
- Original price was: €6,099.€4,500Current price is: €4,500.
-
- -21%

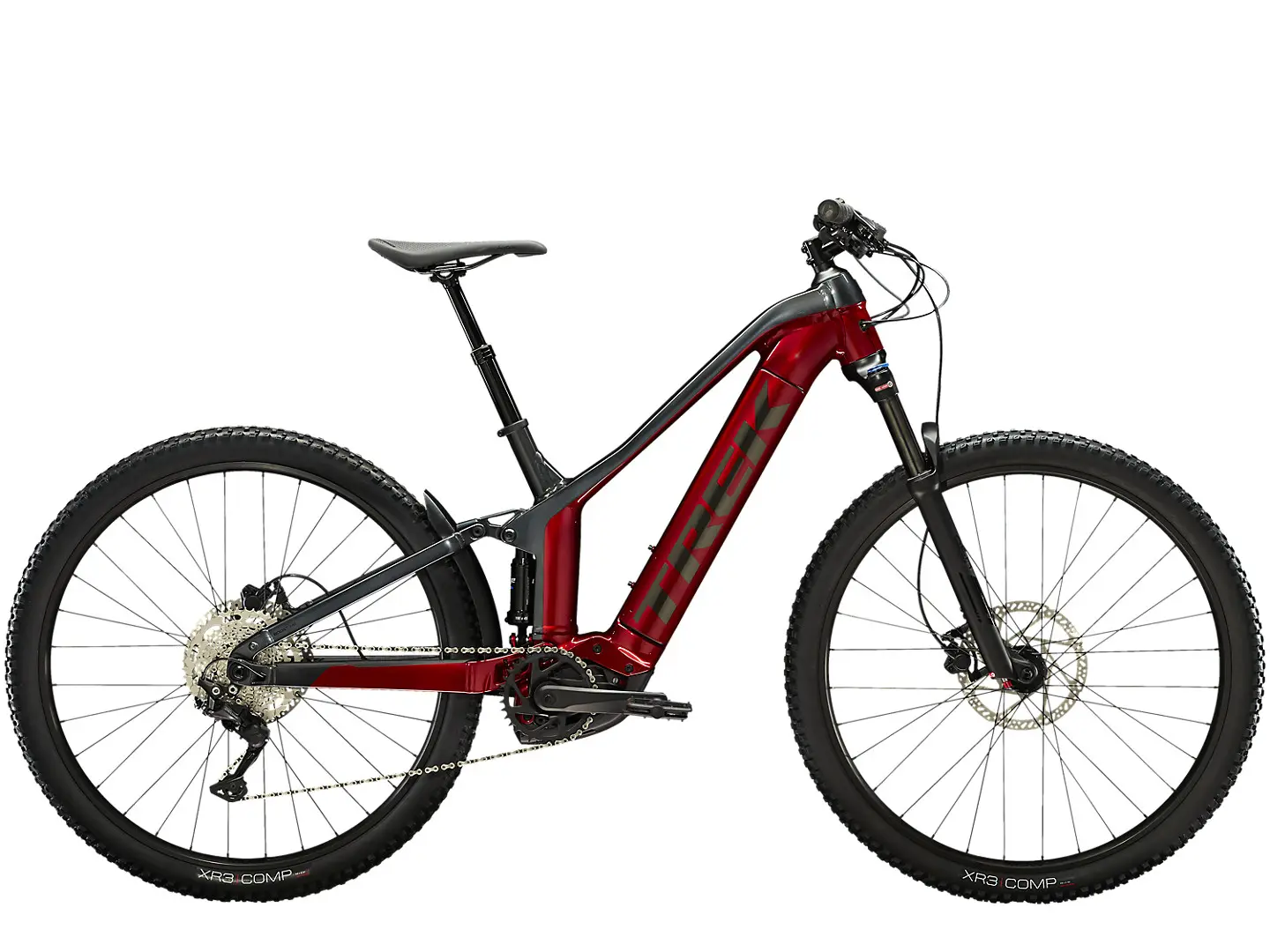

Trek Powerfly FS 4 625 Gen 2 E-Bike | 2023
- Original price was: €4,799.€3,800Current price is: €3,800.
-
- -20%
Trek Allant+ 8S Stagger | 2023
- Original price was: €3,999.€3,200Current price is: €3,200.
Related products
-
- -5%
Focus Jam² 9.9 Drifter E-MTB – Full Suspension Bike
- Original price was: €7,300.€6,900Current price is: €6,900.
-
- -20%

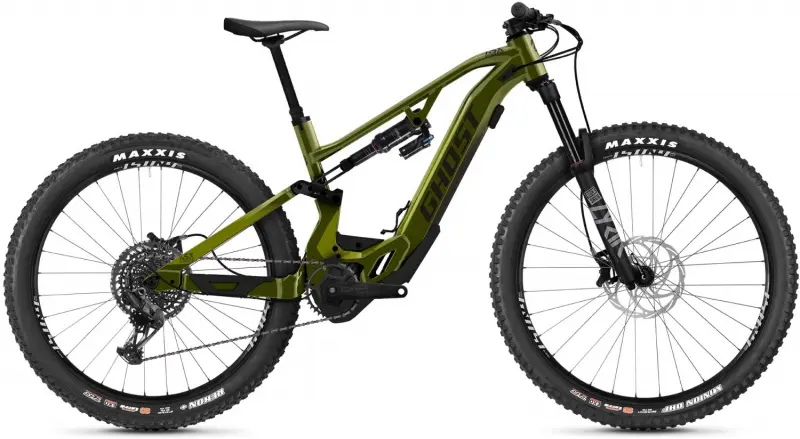

Ghost Hybride ASX Universal 160 – 625 Wh – 2021
