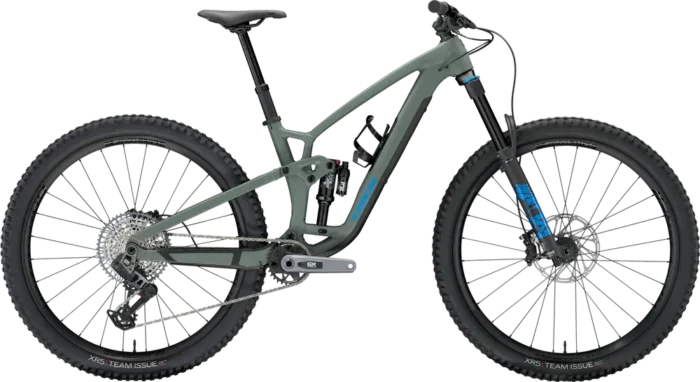

Trek Fuel EX 8 GX AXS T-Type Gen 6 For Sale Online

The Trek Fuel EX 8 GX AXS is an evolved trail bike, dialed for riders who chase down rowdy descents, and want a bike that’s happy to pedal back to the top and do it again. The lightweight alloy frame pairs with a upgraded electronic wireless 12-speed SRAM GX Eagle transmission, while a 150mm FOX Rhythm fork cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that the come with the carbon model, but without the lofty price tag.

Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
You’ll get upgraded components where it matters most, with SRAM’s latest GX Eagle AXS wireless electronic transmission for the smoothest shifting under load
With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
The dropper post lets you lower your saddle on the fly so it’s out of the way on descents
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

Features at a Glance

Weight: 15.9 kg
Frame: Aluminum
Suspension: Full, 140 / 150mm
Fork: Fox Rhythm Float 36
Shock: Fox Float X Performance
Wheels: 27.5″ / 29″ Aluminum
Groupset: GX Eagle Transmission, X01 Eagle AXS
Drivetrain: 1 × 12 Electronic
Brakes: Hydraulic Disc
Seatpost: Dropper

Specifications of Trek Fuel EX 8 GX AXS T-Type Gen 6 – 2024

Build

Frame	Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5″
Fork	Size: XS, S, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel; Size: S, M, ML, L, XL, XXL, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel Travel: 150mm Spring Type: Air
Shock	Fox Performance Float X, 2-position damper, 185mm x 55mm Travel: 140mm
Bottom Bracket	SRAM DUB MTB Wide, 73mm, BSA threaded
Headset	Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible
Stem	Size: XS, S, Bontrager Elite, 35mm, 0 degree, 35mm length; Size: M, ML, L, XL, XXL, Bontrager Elite, 35mm, 0 degree, 45mm length
Handlebar	Size: XS, S, Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width; Size: M, ML, L, XL, XXL, Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Saddle	Bontrager Verse P3, chromoly rails
Seatpost	Size: XS, S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length; Size: L, XL, XXL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper
Grips	Bontrager XR Trail Elite, nylon lock-on

Groupset

Rear Derailleur	SRAM GX Eagle AXS, T-Type
Crank	SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
Shifters	SRAM AXS POD
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12 speed
Chain	SRAM GX Eagle, T-Type, 12 speed
Brakes	SRAM DB 8 4-piston hydraulic disc Type: Hydraulic Disc

Wheels

Rims	Front: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5”; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5”; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29”
Tires	Size: XS, S, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5×2.50”; Size: S, M, ML, L, XL, XXL, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50”
Disc Rotors	Size: XS, S, M, ML, L, XL, XXL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: XS, S, M, ML, L, XL, XXL, SRAM CenterLine, 6-bolt, round edge, 200mm
