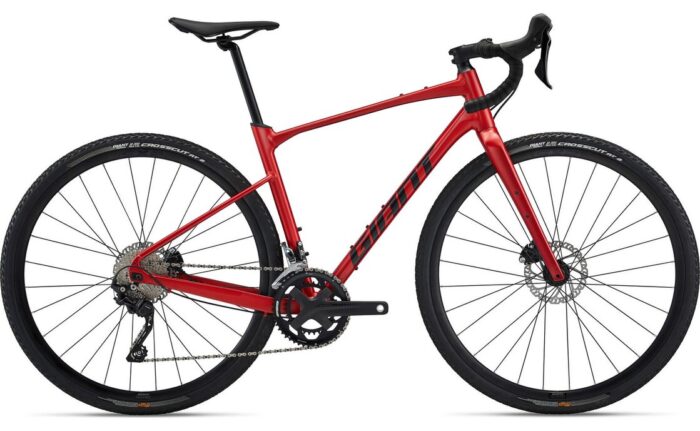

Giant Revolt 1 | 2024



Giant REVOLT 1 ​Gravel bike for sale

The Giant REVOLT is an aluminum all-rounder that you can ride on roads, gravel or off-road. A carbon fork ensures a smooth ride and a flip-chip dropout lets you adjust the wheelbase and tire clearance.

Details of the Giant REVOLT 1 ​​GRX/Tiagra Gravel Bike

  • With the 2×10-speed Shimano GRX + Tiagra gears you can move quickly
  • 38C wide GIANT CrossCut AT2 tubeless tires
  • Giant D-Fuse seat post for increased compliance
  • Light, comfortable AluxX aluminum frame and fork made of Advanced Carbon
  • Gravel specific geometry
  • “Flip chip” Dropouts
  • Many attachment points for accessories such as drinking bottles, luggage racks, mudguards and much more.

Main features of the Giant REVOLT 1 ​​GRX/Tiagra Gravel Bike

  • Confident Handling: The frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, a shorter stem and a lower bottom bracket drop improve stability on rough terrain.
  • Improved Compliance: The new frame features a lower seatstay transition and smaller diameter tubes to absorb shock and vibration on the road. The D-Fuse handlebar and seat post work as a system to increase compliance without sacrificing stiffness when cornering, sprinting or climbing.
  • Adjustable wheelbase: Medium Flip chip. The wheelbase can be changed in the dropout. The change in the wheelbase also has an impact on the maximum tire width: In the “short” version this is a maximum of 45c tires, while in the “long” position tires up to a width of 53c can be installed.


Product name: Giant REVOLT 1 ​​GRX/Tiagra Gravel Bike – 2024
Manufacturer: Giant Bikes
Item number: GNT553574
Activity: Ride a bike
Gender: Men’s
Material: aluminum
Cycling area of ​​application: Allroad/Gravel
Hubs: GIANT S-X2 Disc
Spokes: GIANT S-X2 Disc
Rims: GIANT S-X2 Disc, tubeless ready
Chain: KMC X10
Cassette: Shimano Tiagra CS-HG500
Shift lever: Shimano GRX RX-400, 2-speed
Rear derailleur: Shimano GRX RX-400, 10-speed
Front derailleur: Shimano Tiagra
Inner bearing: FSA Mega EXO
Chainring gradation: 32-48
Crank: FSA Omega Adventure
Brakes: Shimano BR-RX400 HRD, 160mm
Lever: Shimano GRX RX-400 HRD
Seat post model: GIANT D-Fuse, (compatible with 30.9mm posts)
Saddle: GIANT Approach
Handlebar tape: GIANT Cork
Handlebar: GIANT Contact XR D-Fuse
Stem: GIANT Contact
Fork: Advanced full carbon fork, OD1 fork steerer, 12×100 mm
Frame: AluxX frame, Flip Chip drop out, 12×142 mm max. tire clearance: 45mm (short), 53 mm (long)
switching group: Shimano
Cassette gradation: 11-34
Switching stages – front: 2
Circuit: 10 times
Switch operation: Mechanically
Type of brake: Disc brake
Wheel size: 28″ (622mm)
Bicycle special equipment: Tubeless kit (sealant, valves, tire lever, valve tool, manual)
Seat post: Seat post rigid
Tires: GIANT CrossCut AT2, 700x38c, Tubeless Ready, 30 TPI delivered tubeless
Brake operation: Hydraulic
Model year: 2024
Collection: All year round

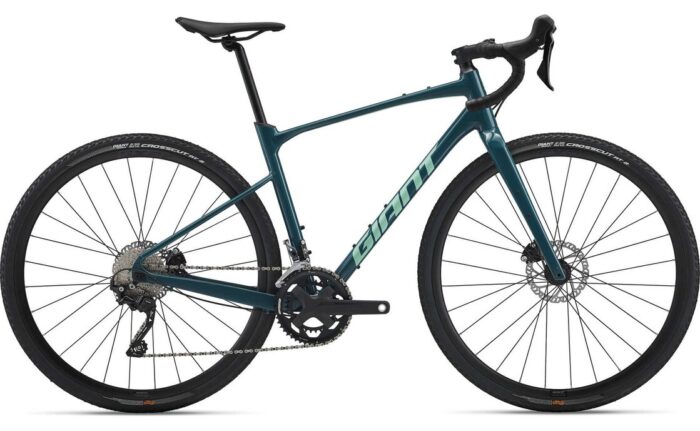

Color: Grenadine satin; Deep Lake
Fork design: Rigid fork
Weight: 10.36 kg
Train relocation: internal
