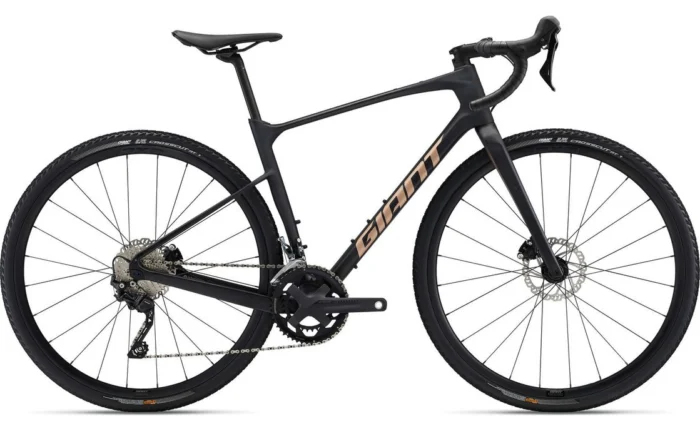

Giant Revolt Advanced 3 V1 | 2024



Giant Revolt Advanced 3 V1 – 2024 for sale online

Rough roads, gravel or gravel.

Whatever you decide, that Giant Revolt Advanced 3 | V2does everything, a real all-rounder. The basis is an advanced carbon frame with many mounting points for accessories. This means the Revolt can be adjusted exactly to your preferences. Using a “flip chip” on the rear dropout, it is possible to change the wheelbase by 1cm and thus adapt the driving behavior to your own preferences.

Details of the Giant REVOLT ADVANCED 3 | V1 – Carbon Gravel Bike – 2024

  • With the 2×10-speed Shimano GRX + Tiagra gears you can move quickly
  • 38C wide CrossCut AT1 tubeless ready tires
  • Giant D Fuse Seat post for increased compliance
  • Lightweight, comfortable frame and fork made of Advanced Carbon
  • Gravel specific geometry
  • Flip chip” Dropouts
  • many attachment points for accessories

Main features of the REVOLT ADVANCED 3 | V1 Carbon gravel bike

  • Fast and light: the carbon frame and fork save more than 160 g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for better acceleration and climbing characteristics.
  • Tuned System: Lowered seat stays with thin tubes absorb shocks and vibrations on the road. The D-Fuse-Handlebars and the seat post work as a system to increase compliance without sacrificing rigidity when cornering, sprinting or climbing.
  • Adaptable to the terrain: With a Flip chip at the rear dropout you can set the wheelbase short for faster handling or long for more stability at high speeds. The long setting allows tires with a diameter of up to 53 mm.


Product name: Giant REVOLT ADVANCED 3 | V1 – Carbon Gravel Bike – 2024
Manufacturer: Giant Bikes
Item number: GNT674344
Activity: Ride a bike
Gender: Men’s
Material: Carbon
Cycling area of ​​application: Allroad/Gravel
Hubs: GIANT P-X2 Disc
Spokes: GIANT P-X2 Disc
Rims: GIANT P-X2 Disc
Chain: KMC X-10-1
Cassette: Shimano Tiagra CS-HG500
Shift lever: Shimano GRX RX-400
Rear derailleur: Shimano GRX RX-400
Front derailleur: Shimano Tiagra
Inner bearing: FSA BB-AL86
Chainring gradation: 48-32
Crank: FSA Omega
Brakes: Shimano GRX RX-400 HRD | BR-RX400 HRD 160mm
Seat post model: GIANT Contact D-Fuse | 30.9mm
Saddle: GIANT Approach
Handlebar tape: GIANT Stratus Lite 3.0
Handlebar: GIANT Contact XR D-Fuse
Stem: GIANT Contact
Fork: Advanced Full Carbon | OD1
Frame: Advanced Carbon | Flip chip
switching group: Shimano
Cassette gradation: 11-34
Switching stages – front: 2
Circuit: 10 times
Switch operation: Mechanically
Type of brake: Disc brake
Wheel size: 28″ (622mm)
Bicycle special equipment: Tubeless kit
Seat post: Seat post rigid
Tires: GIANT CrossCut AT1 | 700x38c | Tubeless Ready | 60TPI
Maximum tire width: 53mm
Brake operation: Hydraulic
Model year: 2024
Collection: All year round
Color: Black
Fork design: Rigid fork
Weight: 9.35 kg
