Description

Trek Checkpoint SL 7 AXS Gen 3 For Sale Online

The Trek Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts and clearance for up to 50 mm tyres (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations to help you float over chatter and potholes. It’s decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS D2 drivetrain.

Features at a Glance

Weight: 9.0
Frame: Carbon
Suspension: Rigid
Fork: Carbon
Wheels: 700c Carbon
Drivetrain: 1×12 Electronic
Groupset: Force, Force XPLR eTap
Brakes: SRAM Force Hydraulic Disc

Specifications of Trek Checkpoint SL 7 AXS Gen 3 – 2025

Build

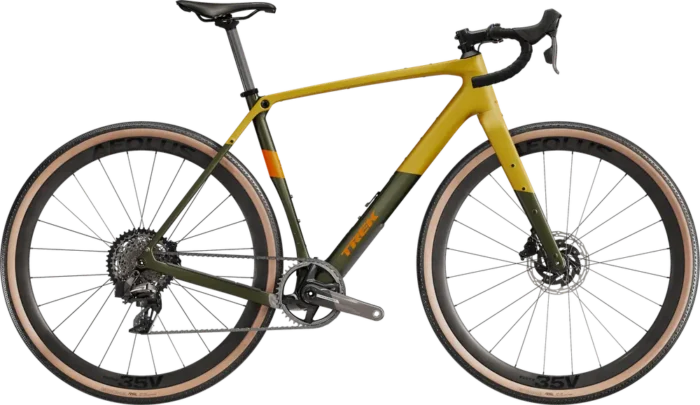

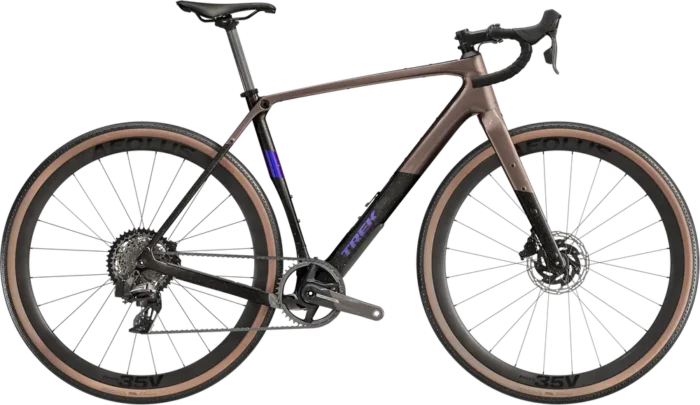

Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 50c Colors: Bronze Age / Carbon Smoke Matte; Baja Yellow Matte / Drab Olive Matte
Fork	Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Bottom Bracket	SRAM DUB Wide, T47 threaded, internal bearing
Stem	Size: XS, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: S, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M, ML, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: L, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar	Size: XS, Bontrager Pro Gravel, 40cm width; Size: S, M, Bontrager Pro Gravel, 42cm width; Size: ML, L, Bontrager Pro Gravel, 44cm width; Size: XL, Bontrager Pro Gravel, 46cm width
Saddle	Size: XS, S, Verse Short Elite, hollow magnesium rails, 155mm width; Size: M, ML, L, XL, Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost	Bontrager carbon, 27.2mm, 8mm offset, 330mm length Type: Rigid

Groupset

Rear Derailleur	SRAM Force XPLR AXS D2, 44T max cog
Crank	Size: XS, S, SRAM Force 1 D2, 40T, DUB Wide, 165mm length; Size: M, SRAM Force 1 D2, 40T, DUB Wide, 170mm length; Size: ML, L, SRAM Force 1 D2, 40T, DUB Wide, 172.5mm length; Size: XL, SRAM Force 1 D2, 40T, DUB Wide, 175mm length
Shifters	SRAM Force AXS D2, 12 speed
Cassette	SRAM XG-1271, 10-44, 12 speed
Chain	SRAM Force, 12 speed
Brakes	SRAM Force AXS hydraulic disc, flat mount Type: SRAM Force Hydraulic Disc

Wheels

Rims	Front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
Tires	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Disc Rotors	SRAM CenterLine X, centerlock, round edge, 160mm

Additional information

Weight	9.0 kg

Trek Checkpoint SL 7 AXS Gen 3 | 2025
