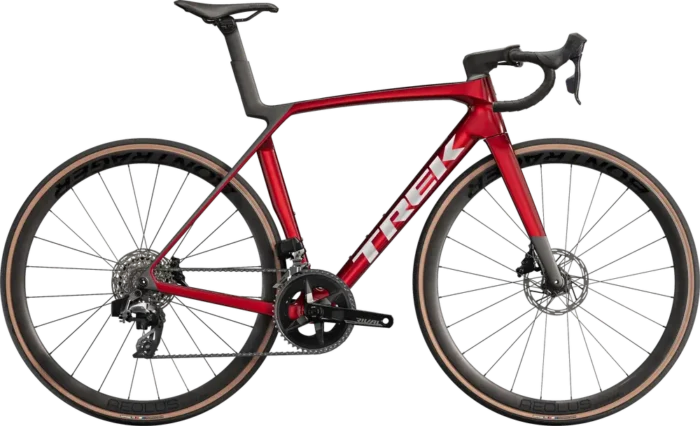

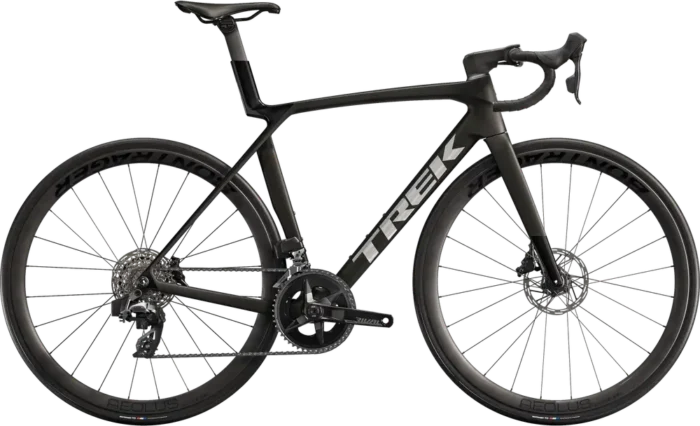

Trek Madone SL 6 AXS Gen 8 Road Bike For Sale

Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It’s built to race with geometry that keeps you quick on the sprints yet in control on fast descents. For clean shifts that are fully customizable, it’s decked out with SRAM’s Rival AXS electronic groupset, topped off with carbon wheels for extra lightweight performance.

Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
You get customizable clean shifting with SRAM’s wireless Rival AXS 2×12 groupset
Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
This bike comes set up tubeless — a first in Trek performance road history

Features at a Glance

Weight: 8.4 kg
Frame: Carbon
Suspension: Rigid
Fork: Carbon
Wheels: 700c Carbon
Drivetrain: 2× 12 Electronic
Groupset: Rival AXS
Power Meter: Rival AXS
Brakes: Hydraulic Disc

Specifications of Trek Madone SL 6 AXS Gen 8 – 2025

Build

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 32c
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Stem	Size: XS, Trek RCS Pro, -7 degree, 80mm length; Size: S, M, Trek RCS Pro, -7 degree, 90mm length; Size: ML, L, Trek RCS Pro, -7 degree, 100mm length; Size: XL, Trek RCS Pro, -7 degree, 110mm length
Handlebar	Size: XS, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: S, M, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: ML, L, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: XL, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Saddle	Size: XS, S, Bontrager Aeolus Comp, steel rails, 155mm width; Size: M, ML, L, XL, Bontrager Aeolus Comp, steel rails, 145mm width
Seatpost	Size: XS, S, M, Madone aero carbon seatpost, 0mm offset, short length; Size: ML, L, XL, Madone aero carbon seatpost, 0mm offset, long length Type: Rigid

Groupset

Rear Derailleur	SRAM Rival AXS
Front Derailleur	SRAM Rival D1 AXS, braze-on
Crank	Size: XS, S, SRAM Rival AXS w/ power meter, 48/35, DUB, 165mm length; Size: M, SRAM Rival AXS w/ power meter, 48/35, DUB, 170mm length; Size: ML, L, SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM Rival AXS Power Meter, 48/35, DUB, 175mm length
Power Meter	Size: XS, S, SRAM Rival AXS w/ power meter, 48/35, DUB, 165mm length; Size: M, SRAM Rival AXS w/ power meter, 48/35, DUB, 170mm length; Size: ML, L, SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM Rival AXS Power Meter, 48/35, DUB, 175mm length
Shifters	SRAM Rival eTap AXS, 12 speed
Cassette	SRAM XG-1250, 10-36, 12 speed
Chain	SRAM Rival, 12 speed
Brakes	SRAM Paceline, rounded, centerlock, 160mm Type: Hydraulic Disc

Wheels

Rims	Front: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle
Tires	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
Disc Rotors	SRAM Paceline, rounded, centerlock, 160mm
