Description

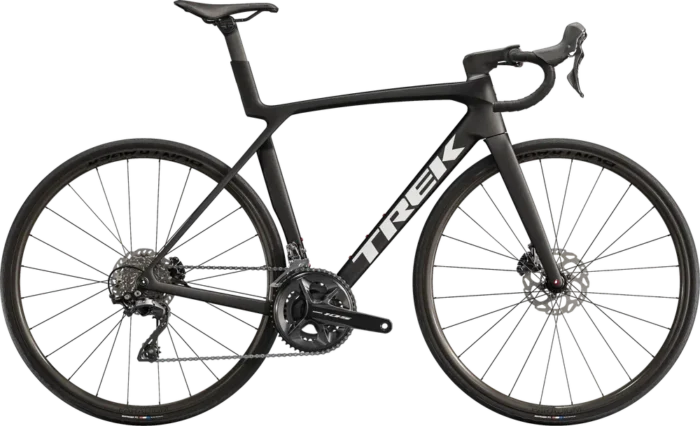

Trek Madone SL 5 Gen 8 Road Bike For Sale

The Madone SL 5 Gen 8 is a lightweight aero road bike that offers top-tier race tech at a slightly more affordable price tag. It shares the same aero advantages as the more expensive Madone SLR Gen 8, but is built with a more affordable OCLV 500 Carbon layup and a two-piece cockpit with hidden cable routing. It’s a pure racer, with a geometry that lets you sprint at lightning speed yet stay in control on fast descents. A Shimano 105 groupset keeps the price tag reasonable while still providing you with reliable mechanical shifting.

Revolutionary Full System Foil aerodynamic tube shapes redefine the concept of speed and optimize aerodynamics around the entire bike
A slightly more affordable 500 Series OCLV Carbon frame and new tube shapes help to significantly reduce weight, making climbing much faster
With the robust Shimano 105 groupset you get smooth and precise shifting behavior for a pleasant price
The lightweight, race-ready IsoFlow comfort technology keeps you performing at the highest level for longer without compromising weight or air resistance

Features at a Glance

Weight: 8.7 kg
Frame: Carbon
Suspension: Rigid
Fork: Carbon
Wheels: 700c Aluminum
Drivetrain: 2× 12
Groupset: 105
Brakes: Hydraulic Disc

Specifications of Trek Madone SL 5 Gen 8 – 2025

Build

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 32c
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Bottom Bracket	Praxis, T47 threaded, internal bearing
Stem	Size: XS, Trek RCS Pro, -7 degree, 80mm length; Size: S, M, Trek RCS Pro, -7 degree, 90mm length; Size: ML, L, Trek RCS Pro, -7 degree, 100mm length; Size: XL, Trek RCS Pro, -7 degree, 110mm length
Handlebar	Size: XS, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: S, M, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: ML, L, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: XL, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Saddle	Size: XS, S, Bontrager Aeolus Comp, steel rails, 155mm width; Size: XS, S, M, ML, L, XL, Verse Short, steel rails, 145mm width; Size: M, ML, L, XL, Bontrager Aeolus Comp, steel rails, 145mm width
Seatpost	Size: XS, S, M, Madone aero carbon seatpost, 0mm offset, short length; Size: ML, L, XL, Madone aero carbon seatpost, 0mm offset, long length Type: Rigid

Groupset

Rear Derailleur	Shimano 105 R7100, 36T max cog
Front Derailleur	Shimano 105 R7100, braze-on, down swing
Crank	Size: XS, S, Shimano 105 R7100, 50/34, 165mm length; Size: M, Shimano 105 R7100, 50/34, 170mm length; Size: ML, L, Shimano 105 R7100, 50/34, 172.5mm length; Size: XL, Shimano 105 R7100, 50/34, 175mm length
Shifters	Shimano 105 R7120, 12 speed
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Brakes	Shimano RT70, centerlock, 160mm Type: Hydraulic Disc

Wheels

Rims	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Front Hub	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Tires	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Disc Rotors	Shimano RT70, centerlock, 160mm
