Description

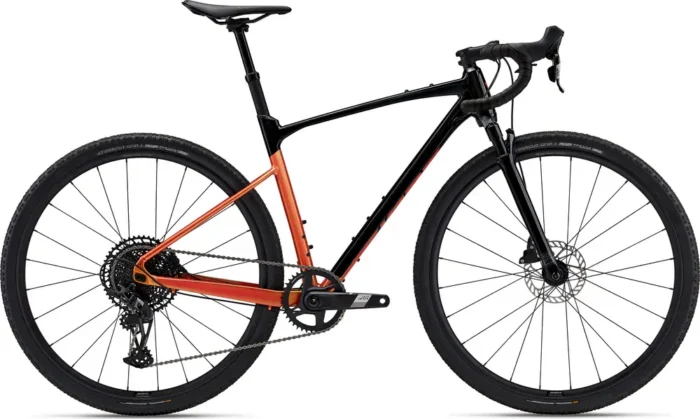

Giant Revolt X 1 – 2024 for sale online

Powerful all-rounder

Explore new terrain with this progressive gravel bike with front suspension. The lightweight aluminum frame has suspension-optimized geometry and a flip chip that lets you adjust the wheelbase and tire clearance for any adventure.

Details of the Giant REVOLT X 1 gravel bikes

Frame: Aluminum
Suspension: Hardtail, 40mm
Fork: RockShox Rudy XPLR
Wheels: 700c Aluminum
Drivetrain: 1 × 12
Groupset: X1, Apex
Brakes: Hydraulic Disc

Gentle control

The lightweight aluminum frameset is specifically designed for front suspension. With 40mm of travel, the fork absorbs shocks so you can ride smoother and faster on uneven gravel and dirt.

Coordinated system

Lowered seat stays with smaller diameter tubes absorb shocks and vibrations from the road, and the Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness you need for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout lets you set the wheelbase short for quicker handling or long for more stability at speed. The long setting also allows you to use tires up to 53mm in diameter. You can use the included suspension seatpost for extra comfort.

SPECIFICATIONS OF GIANT REVOLT X 1 GRAVEL BIKE – 2024

Build

Frame	ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout Tire Clearance: 53c Color: Panther / Heliosorange
Fork	RockShox Rudy XPLR, 40mm, cartridge damper12x100mm thru-axle Travel: 40mm Spring Type: Air
Shock	N/A
Bottom Bracket	SRAM DUB, press fit
Stem	Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
Handlebar	Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Saddle	Giant Approach
Seatpost	Post Moderne suspension dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop Type: Dropper
Pedals	N/A
Grips	cork tape with gel

Groupset

Rear Derailleur	SRAM X1 Eagle 1X12
Front Derailleur	N/A
Crank	SRAM Apex 1 Wide, DUB 1X 40T XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Shifters	SRAM Apex, 1×12
Cassette	SRAM PG-1210, 12-speed, 11×50
Chain	SRAM CN-EAGL-NX-A1, 12-speed
Brakes	SRAM hydraulic, Giant MPH rotors [F]160mm, [R]160mm Type: Hydraulic Disc
Brake Levers	SRAM Apex 1X12 HRD (hydraulic road disc), left lever dropper switch

Wheels

Rims	Giant P-X2 EVO Disc wheelset
Spokes	Stainless
Front Hub	Alloy
Rear Hub	Alloy
Tires	Crosscut GRIP 700x45c, tubeless prepared
