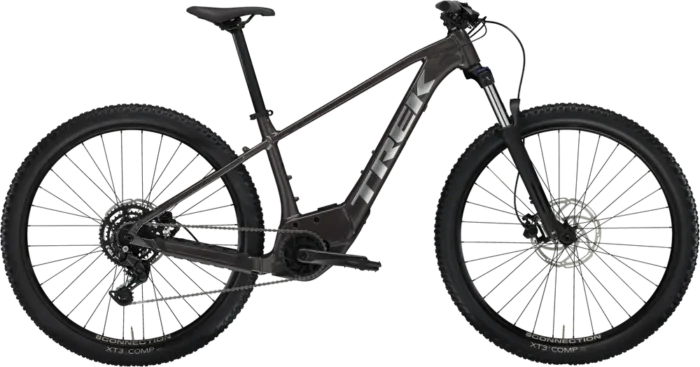

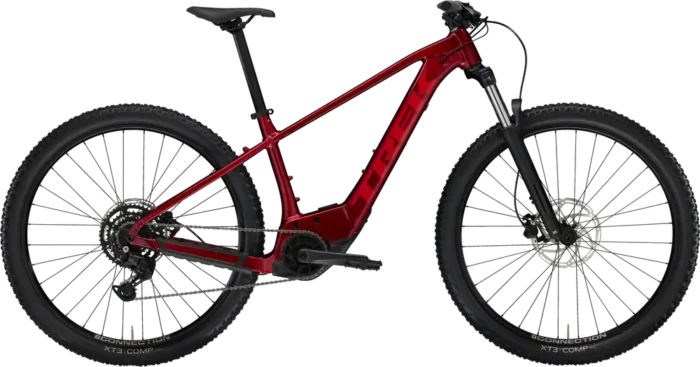

Trek Marlin+ 6 E-Bike For Sale Online

Trek Marlin+ 6 is an electric mountain bike that’s ready to power up your trail rides without breaking the bank. It’s equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch’s Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes

Features at a Glance

Weight: 22.5 kg
Frame: Aluminum
Suspension: Hardtail, 120mm
Fork: Suntour XCM
Wheels: 27.5″ / 29″ Aluminum
Groupset: CUES, FSA
Drivetrain: 1 × 9
Motor: Bosch 6000W 50Nm mid-drive
Battery: Bosch 400Wh
Brakes: Hydraulic Disc

Specifications Of Trek Marlin+ 6 – 2024

Build

Frame	Size: XS, Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle; Size: S, M, L, XL, Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle Hanger Standard: UDH Tire Clearance: 2.6″
Fork	Size: XS, SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel; Size: S, M, L, XL, SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel Travel: 120mm Spring Type: Coil
Headset	Semi-integrated, loose ball bearing, 1-1/8” top, 1.5” bottom
Stem	Size: XS, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: S, M, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Handlebar	Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: M, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Saddle	Bontrager Verse P3, steel rails
Seatpost	Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid
Pedals	VP-536 nylon platform
Grips	Bontrager XR Endurance Comp, lock-on

Groupset

Rear Derailleur	Shimano CUES U4000
Crank	FSA CK-220, 165mm length
Shifters	Shimano U4000, 9 speed
Cassette	Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain	Shimano LG500, 9/10/11 speed
Brakes	Tektro HD-M275 hydraulic disc Type: Hydraulic Disc

Wheels

Rims	Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
Front Hub	Shimano TC500 alloy, centerlock, 110x15mm thru axle
Rear Hub	Shimano TC500 alloy, centerlock, 148x12mm thru axle
Tires	Size: XS, S, Bontrager XT3 Comp, wire bead, 30 tpi, 27.5×2.40”; Size: M, L, XL, Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40”
Disc Rotors	Tektro, centerlock, 203mm

Electric Components

Motor	Bosch Active Line Plus
Battery	Bosch CompactTube 400Wh
Charger	Bosch standard 2A, 110V, smart system
