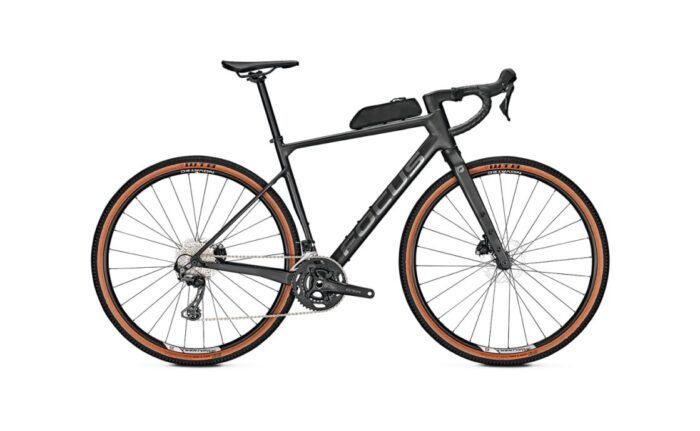

Focus Atlas 8.7 | 2023



Focus Atlas 8.7 – 2023 gravel bike for sale online

Knows no limits: The Focus ATLAS offers up to 47 mm tire clearance and all mounting options for bikepacking. Whether bad weather, demanding terrain, steep climbs or long distances – the fast and comfortable gravel bike offers full control and maximum variability. The wide handlebars with flare and disc brakes offer a lot of safety and comfort for the light and robust carbon bike.

Knows no limits – the new Focus ATLAS 8.7

Comfortable and agile on all trails

This lightweight carbon bike weighs just 9.6 kg and is designed for your fast gravel adventures. The combination of a longer reach and a short stem gives the bike an extremely smooth ride. The front is relatively high, which gives you safety on descents. To ensure that our gravel bike remains maneuverable, the frame has extremely short chainstays. This agility will delight all riders who like to challenge each other, regardless of the surface. So that you can master even demanding gravel routes perfectly with this fast bike, you can adjust the handlebar position individually to your needs. We offer the stem in six lengths from 70 to 120 mm; you can adjust the handlebar height using the two-part special spacers.

A variety of options for transporting luggage

The ATLAS 8.7 frame offers numerous screw points to transport your bags comfortably. A handlebar, saddle and frame bag can be easily attached. The top tube bag is included with our ATLAS 8.7. You can store necessary tools here. Or food to have a quick snack while driving. The frame offers you three additional screw-on options for bottle cages. One can be mounted on the seat tube, two more on the down tube – one below and one above. In addition, the three screws on the left and right sides of the fork allow you to attach additional luggage. Here you can attach straps for additional bags or bottle holders. The ATLAS 8.7 is designed for a maximum system weight (bicycle, rider and equipment) of 120 kg.

Designed for fast gravel adventures

The ATLAS 8.7 features fast-rolling, tubeless-ready 45mm WTB Riddler tires and a Shimano GRX600 2×11 groupset with dedicated gravel gearing for bikepacking adventures. The wide handlebars with flare offer a lot of safety and comfort. The CIS (Cockpit Integration Solution) technology ensures a tidy cockpit with no cables in the way if you want to attach a handlebar bag. Whether it’s bad weather conditions or challenging terrain, whether you’re suffering on steep climbs or tackling really long distances – the ATLAS 8.7 supports you on all your journeys, even to the ends of the world.


  • Light carbon frame and tidy cockpit with integrated CIS cable routing
  • Shimano GRX600 2×11 groupset with special gravel ergonomics for reliable shifting and safe braking even on rough terrain
  • Reliable and stable gravel wheelset: Novatec 25 Elite system wheels with double-sealed bearings


Cockpit Integration Solution | CIS

The Focus Cockpit Integration Solution (CIS) delivers the first functioning stem with internal cable routing for mechanical shifting. All cables run on the handlebars into the stem and through the headset into the frame. For optimal shifting and braking quality, Focus has chosen the bending radius so large that all cables run smoothly.

Road Boost

Thanks to the wider ROAD BOOST hubs and the slight offset of the cassette, the chain line runs perfectly again. At the same time, the wider hubs ensure greater rigidity of the wheels and thus reliable driving characteristics and high durability.


Frame: Carbon, disc, CIS integration, press fit BB86, 148×12 mm thru-axle, flat mount 160 / 160 mm, internal cable routing
Frame material: Carbon
Wheel size: 28″
Color: black
Fork: Carbon, disc, 110×12 mm thru axle, flat mount 160 / 160 mm, internal brake cable routing, multiple mounting points
Brakes: Shimano GRX 400
Brake discs: 160/160
Tax rate: Acros IS 52 / 286-IS52 / 40, FOCUS integrated CIS
Stem: FOCUS CIS integrated, 31.8 mm, aluminum
Handlebar: FOCUS JD RA85, 31.8 mm, drop: 116 mm, reach: 74 mm, flare: 10°
Saddle: fi’zi:k Taiga
Seat post: Aluminum, 27.2mm
Crank: Shimano GRX FC-RX600, 11-speed, 46/30T
Bottom bracket/bottom bracket: Shimano Pressfit Road BB86
Rear derailleur: Shimano GRX 810
Shift lever: Shimano GRX 600
Front derailleur: Shimano GRX FD-RX810
Cassette: Shimano 105 R7000, 11-34T
Tires: WTB Riddler, 700 x 45C, folding
Wheelset: Novatec 25 Elite, 25-622, disc, center lock, front: 110×12 mm, rear: 148×12 mm
Pedals: not included in the delivery
Maximum weight allowed: 110 kg (body weight + bike + equipment)
Weight of complete bike: 9.60kg
