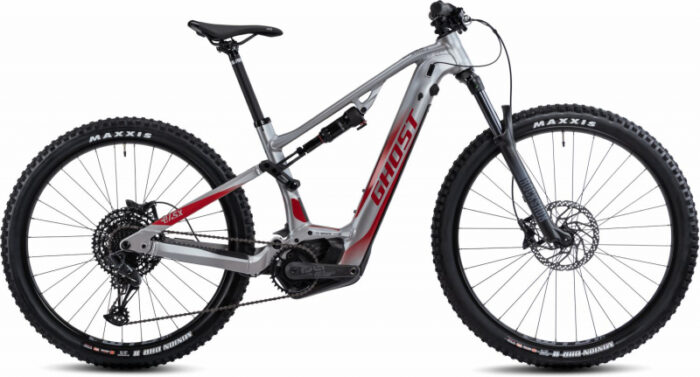

Ghost E-ASX 130 Universal E-Bike – 2022



Ghost E-ASX 130 Universal E-Bike For Sale Online

Powerful uphill. With full control downhill. The E-ASX 130 Universal is an e-mountain bike with a Bosch Performance Line CX motor and a large, fully integrated 750 Wh battery. These are integrated into the new Bosch Smart System and can be precisely analyzed and optimized in a variety of ways via an app. Thanks to the chassis with 130mm travel front and rear, it offers enough reserves on alpine tours and flowy trails. As the name suggests: A universally applicable E-MTB that goes along with everything!

Specifications of Ghost E-ASX 130 Universal E-Bike

Product Ghost E-ASX 130 Universal E-Bike
Model Year 2022
Riding Type Trail
Rider Unisex
Sizes and Geometry
S, M, L, XL
Wheel Size 27.5″ (650b), 29″, Other (Mullet)
E-Bike Class Class 1: Pedal Assist (Pedelecs)
Motor Bosch Performance CX Gen4
Battery Bosch PowerTube, integrated
Battery Capacity 750 Wh
Display/Remote Bosch LED remote
Modes Turbo, Sport/eMTB, Tour, Eco, Walk Assist
Max Speed with Assist 15.6 mph (25 km/h)
Frame Material Aluminum
Frame Material Details Molded chainstay and down tube protection
Rear Travel 130mm
Rear Shock RockShox Deluxe Select R, 210mm x 50mm
Fork RockShox 35 Silver TK, Solo Air spring
Fork Travel 130mm
Head Tube Diameter Straight, 56mm
Headset ACROS AZX-205, 56mm upper/lower
Handlebar Ground Fiftyone, 31.8mm clamp diameter
SM: 760mm width, 15mm rise; MD/LG: 780mm width, 15mm rise; XL: 780mm width, 40mm rise
Stem Ground Fiftyone, 45mm length, 31.8mm bar clamp
Brakes Shimano MT420, 4-piston, 203mm rotors
Brake Levers Shimano MT420
Drivetrain 1x
Shifters SRAM SX Eagle, 12-speed, Single Click
Front Derailleur None
Rear Derailleur SRAM SX Eagle, 12-speed
Chainguide None
Cranks e*thirteen e*spec Plus
Chainrings e*thirteen e*spec Plus, 34 tooth
Pedals None
Chain 12-speed
Cassette SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Rims WTB ST i30, 30mm inner width
Hubs Shimano, MT410 15x110mm Boost front, MT400 12x148mm Boost rear with HG driver
Tires Schwalbe Smart Sam, 2.6″
Saddle Selle Royal Vivo
Seatpost Ghost SP DC1
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size
Bottle Cage Mounts One inside front triangle
Colors LightGrey/RiotRed
Warranty 5 years frame
Miscellaneous • OST+ rear suspension design
• Mixed (“Mullet”) wheels: 29″ front, 27.5″ rear
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Includes Bosch 4A battery charger
