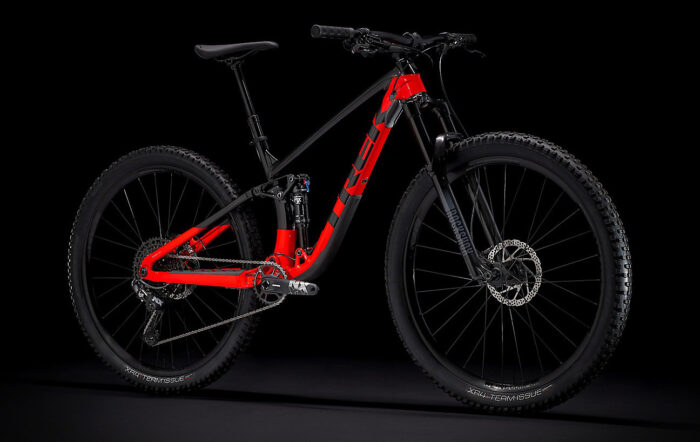

Trek Fuel EX 7 For Sale Online

The Fuel EX 7 is at its best on difficult descents, where the high-quality chassis components can show their strengths. The lightweight aluminum frame, tubeless-ready wheels, and reliable SRAM NX Eagle 1×12 drivetrain complete this great all-round full-suspension mountain bike.

Benefit from more traction and control thanks to parts upgrades that can keep up with your advancing mountain bike skills
You get a solid trail bike that will accompany you everywhere
Thanks to the variable seat post, you can lower the saddle while riding so that it doesn’t get in the way on descents.
Wide wheels provide better traction and control thanks to better tire support
We have expanded our size range so that everyone can benefit from a better fit. Always the fastest wheel for your frame size: XS frames roll on 27.5″ wheels, with frames in size S you can choose between 27.5″ or 29″ wheels, frames from size M to XL get 29″ wheels.

Features at a Glance

Weight: 14.5 kg
Frame: Aluminum
Suspension: Full, 130 / 140mm
Fork: RockShox 35 Gold R
Shock: Fox Float DPS Performance
Wheels: 27.5″ / 29″ Aluminum
Groupset: NX Eagle
Drivetrain: 1 × 12
Brakes: Hydraulic Disc
Seatpost: Dropper

Specifications Of Trek Fuel EX 7 Gen 5 – 2023


Product	Trek Fuel EX 7 Gen 5 Bike
Model Year	2023
Riding Type	Trail
Rider	Unisex
Sizes and Geometry	XS 27.5″ , SM 27.5″ , M 29″, ML 29″, L 29″, XL 29″, XXL 29″
Wheel Size	27.5″ (650b), 29″
Frame Material	Aluminum
Frame Material Details	Alpha Platinum Aluminum, magnesium rocker link, molded down tube, and chainstay protection
Rear Travel	130mm
Rear Shock	FOX FLOAT Performance, EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab 27.5″: 210mm x 52.5mm; 29″: 210mm x 55mm
Fork	RockShox 35 Gold RL, Motion Control damper, DebonAir spring, lockout, 44mm offset, Maxle Stealth axle
Fork Travel	140mm
Head Tube Diameter	Tapered, 1.125″ top, 1.5″ bottom
Headset	Trek Knock Block Integrated, 58° radius, cartridge bearings
Handlebar	Bontrager, alloy, 750mm width, 15mm rise, 31.8mm clamp diameter
Stem	Bontrager Rhythm Comp, 50mm length, 0° rise, 31.8mm bar clamp, Knock Block compatible
Grips	Bontrager XR Trail Comp, nylon lock-on
Brakes	Shimano MT410, 2-piston, Shimano RT56 180mm 6-bolt rotors
Brake Levers	Shimano MT4100
Drivetrain	1x
Shifters	SRAM NX Eagle, 12-speed
Front Derailleur	None
Rear Derailleur	SRAM NX Eagle, 12-speed
ISCG Tabs	ISCG05
Chainguide	None
Cranks	SRAM NX Eagle DUB Length: 170mm (XS-SM), 175mm (MD-XL)
Chainrings	SRAM NX Eagle, 30 tooth, steel
Bottom Bracket	SRAM DUB, 92mm PressFit
Pedals	None
Chain	SRAM NX Eagle, 12-speed
Cassette	SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Rims	Bontrager Line Comp 30 wheelset, tubeless-ready
Hubs	Bontrager Line Comp 30 wheelset, 110x15mm Boost front, 148x12mm Boost rear with Rapid Drive 54 freehub and HG driver
Spokes	Bontrager Line Comp 30 wheelset
Tires	Bontrager XR4 Team Issue, tubeless-ready, Inner Strength sidewalls, aramid bead, 120 TPI
Saddle	Bontrager Arvada, steel rails, 138mm width
Seatpost	TranzX JD-YSP18 dropper Drop: 100mm (XS/SM), 150mm (MD/ML/LG/XL/XXL)
Seatpost Diameter	31.6mm
Seatpost Clamp	Single-bolt
Rear Dropout / Hub Dimensions	148x12mm Boost
Max. Tire Size	2.6″
Bottle Cage Mounts	One inside front triangle (only on MD and larger sizes)
Colors	Trek Black/Radioactive Red, Dark Prismatic
Warranty	Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight	14.11kg
Miscellaneous	• XS/SM get 27.5″ wheels, MD/ML/LG/XL/XXL get 29″ wheels • ABP (Active Braking Pivot) rear suspension system • Geometry adjustable via Mino Link flip chip in rear rocker link pivot • Straight Shot frame design with Knock Block steerer stop • Control Freak internal cable routing • Includes Bontrager TLR rim strips, tubeless valves, and sealant • Weight is given for size MD set up tubeless
