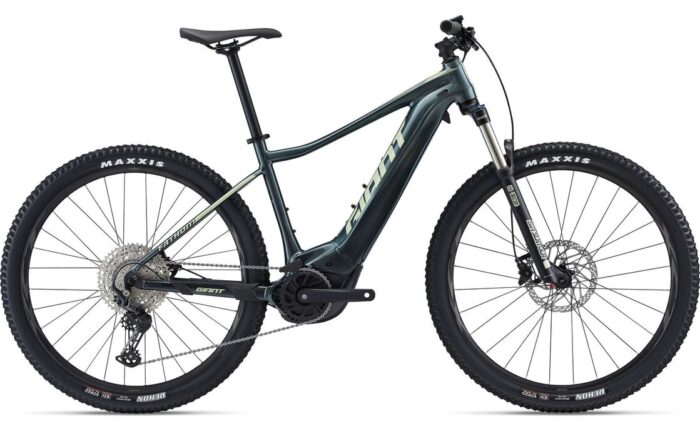

Giant Fathom E+ 1 E-Bike | 2022



Giant Fathom E+ 1 E-Bike For Sale Online

Do you want to ride faster uphill and further than usual with ease? This new hardtail E-MTB has the perfect formula for enjoyable days on the trails!

The Fathom E+ is the perfect choice for cross-country and singletrack use. Its lightweight ALUXX SL aluminum frame and casual trail geometry help you enjoy your rides like never before. The SyncDrive Sport Motor supports you seamlessly and directly and ensures that you conquer every hill with a grin on your face.

The EnergyPak Smart Compact 500 battery is brand-new and has an additional range extender as an option. The battery is discretely built into the frame and is simply removed from the side to be charged. The smooth-riding 29-inch wheels and the 120 mm suspension fork guarantee balanced, controlled riding characteristics and the greatest handling.

All features may be called up with ease from the handlebars thanks to the RideControl ONE control unit. You may also link it to the clear EVO display if you like.

Gentle extra power

The SyncDrive Sport motor supports you seamlessly and directly. He will help you conquer any type of terrain while having a lot of fun.

Balanced and safe handling

Thanks to the light aluminum frame with trail-ready geometry, 120 mm suspension fork, and smooth-running 29-inch wheels with tubeless tires, you always have full control off-road.

Long-lasting battery

The integrated EnergyPak Smart offers 500 Wh capacity and can easily be charged to 80 percent in just 2.5 hours with the 6A fast charger.

Specifications of 2022 Giant Fathom E+1 E-Bike


e-bike type e-mountain bike, e-bike XXL
model year 2022
motor support 25
circuit manufacturer Shimano
circuit type derailleur
suspension hardtail
brake type Hydraulic disc brake
colour green
frame size S, M, L, XL, XXL
wheel size 29”
frame shape MTB Hardtail


engine SyncDrive Sport 36V 250W
battery pack 500Wh
screen RideControl Dash 2in1 – SG
charger EnergyPak Smart Charger Compact, 4A


circuit Shimano Deore M6100 Shadow Plus, 12-speed derailleur
shifter Shimano Deore M6100
rear derailleur Shimano Deore M6100 Shadow Plus, 12-speed
crankset FSA Comet, FSA MegaTooth direct-mount 36T chainring
cassette Shimano Deore CS-M6100, 10-51T
Chain KMC e.12 Sport, e-bike optimized


frame AluxX frame, integrated speed sensor, 141 mm QR
Fork SR Suntour XCR 34 Air LO-R, 120mm travel, Boost 15x110mm


braking system Shimano BR-MT400, hydraulic disc brake, f: 203 mm/r: 180 mm
brake lever Shimano Deore BL-MT401


rims GIANT XCT 29”, tubeless ready, 25 mm inner width
Hubs (F/H) Shimano MT401 / Shimano MT401
spokes stainless steel
tires Maxxis Rekon, 29×2.4”, EXO


handlebars GIANT Connect TR Riser 31.8, 20mm rise
stem GIANT Contact
handlebar grips GIANT Tactal Single Lock On
seat post GIANT, 30.9mm
pedals Platform pedals, aluminum
saddle GIANT sports


porter compatible with GIANT Rack-It Metro (Lite)
stand compatible with GIANT KSA18


maximum weight allowed 156kg
