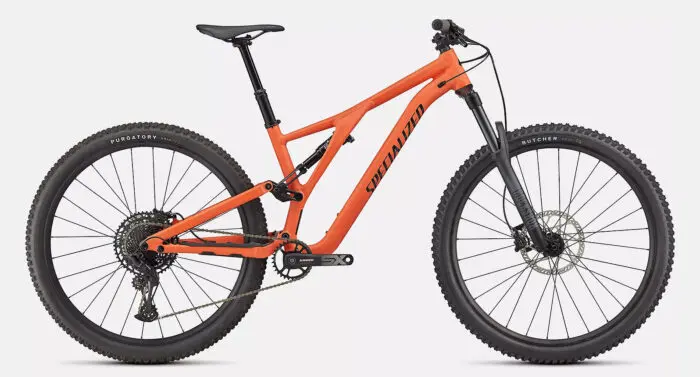

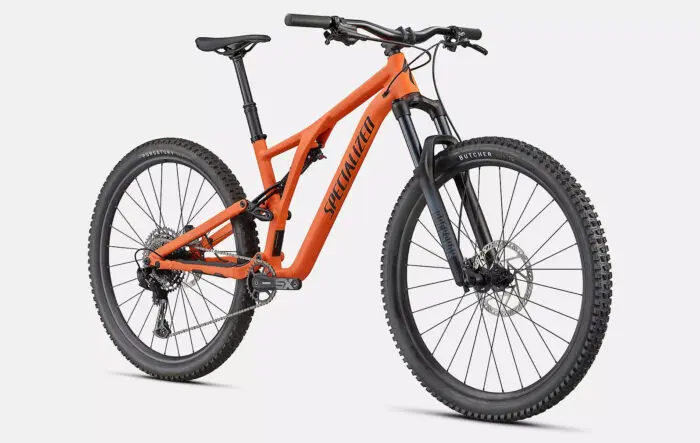

Specialized Stumpjumper Alloy | 2022 Trail Bike



Specialized Stumpjumper Alloy Bike For Sale Online

The Stumpjumper Alloy packs all of the exciting new features of the Stumpjumper – like new suspension kinematics and geometry – into an all-aluminum frame that’s both lightweight and extremely durable. The whole thing is completed with an uncomplicated SRAM SX 12-speed drive – ready for the perfect ride and the next trail adventure.

Specifications of 2022 Specialized Stumpjumper Alloy Bike

Product Specialized Stumpjumper Alloy Bike
Model Year 2022
Riding Type Trail
Rider Unisex
Sizes and Geometry
S1 (high, low), S2 (high, low), S3 (high, low), S4 (high, low), S5 (high, low), S6 (high, low)
Wheel Size 29″
Frame Material Aluminum
Frame Material Details Asymmetrical Sidearm frame design, molded chainstay, and Seatstay protection
Rear Travel 130mm
Rear Shock X-Fusion 02 Pro RL, Rx Trail Tune, rebound adjust, 190mm length, 42.5mm (S1) or 45mm (S2-S6) stroke
Fork RockShox 35 Silver, Solo Air spring, TurnKey lockout, rebound adjust, 44mm offset, Maxle Lite axle
Fork Travel 140mm
Head Tube Diameter Tapered, 1.125″ top, 1.5″ bottom
Handlebar Specialized, 6061 Alloy, 780mm width, 30mm rise, 8° Backsweep, 6° upsweep, 35mm clamp diameter
Stem Specialized Trail, alloy, 35mm bar clamp
Length: 40mm (S1-S2), 50mm (S3-S6)
Grips Specialized Trail
Brakes Tektro Gemini Comp, 2-piston, resin pads, 200mm front rotor, 180mm rear rotor
Brake Levers Tektro Gemini Comp
Drivetrain 1x
Shifters SRAM SX Eagle, 12-speed
Front Derailleur None
Rear Derailleur SRAM SX Eagle, 12-speed
ISCG Tabs ISCG05 (front two tabs)
Chainguide None
Cranks SRAM SX Eagle PowerSpline
Length: 165mm (S1), 170mm (S2-S5), 175mm (S6)
Chainrings SRAM SX Eagle, 30 tooth
Bottom Bracket SRAM PowerSpline, 73mm English/BSA threaded
Pedals None
Chain SRAM SX Eagle, 12-speed
Cassette SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Rims Double-wall alloy, 27mm inner width, 28 hole
Hubs Alloy, sealed cartridge bearings, 15x110mm Boost front, 12x148mm Boost rear with HG driver
Spokes Stainless steel, 14g
Tires Front: Specialized Butcher, GRID casing, GRIPTON T7 compound, 29″ x 2.3″
Rear: Specialized Purgatory, GRID casing, GRIPTON T7 compound, 29″ x 2.3″
Saddle Specialized Bridge, steel rails
Width: 155mm (S1-S2), 143mm (S3-S6)
Seatpost Tranz-X dropper
Drop: 100mm (S1), 125mm (S2), 150mm (S3), 170mm (S4/S5), 200mm (S6)
Seatpost Diameter 34.9mm
Seatpost Clamp Alloy, single bolt, 38.6mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size
Bottle Cage Mounts One inside front triangle

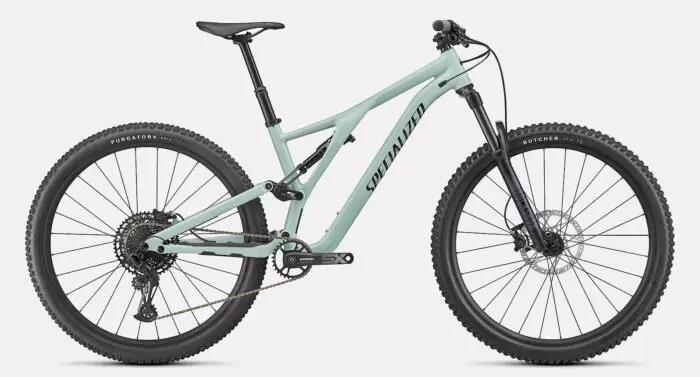

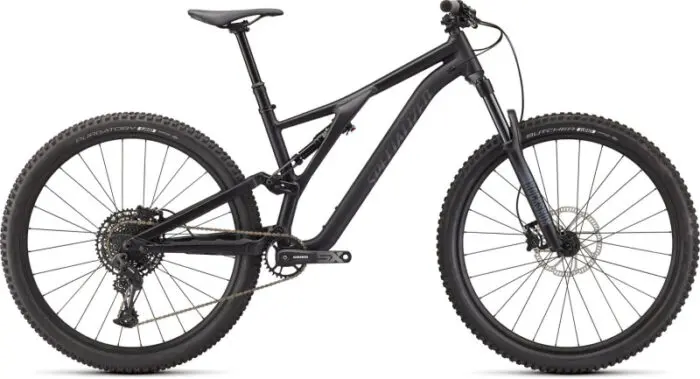

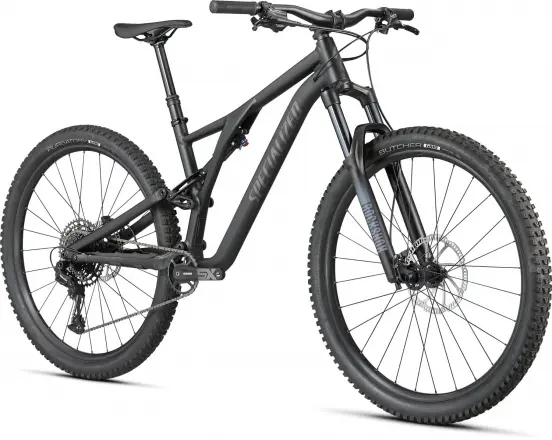

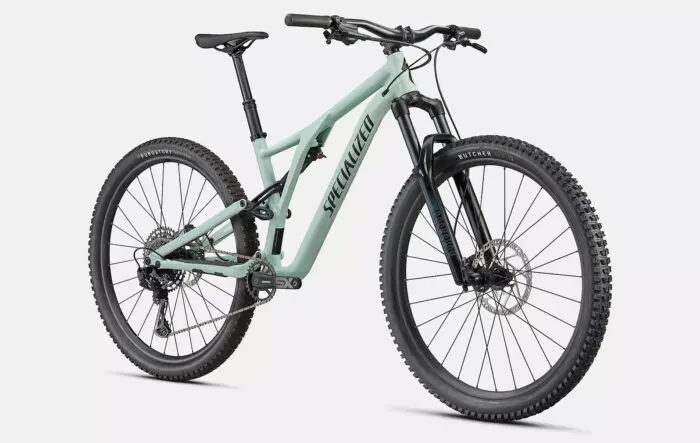

Colors Gloss CA White Sage/Black, Satin Blaze/Black, Satin Black/Smoke
Warranty Limited lifetime frame, 2 years Specialized components
Miscellaneous • Horst Link rear suspension design
• Internal cable routing
• Sealed cartridge bearing pivots
• Geometry adjustable via flip chip at Horst Link
